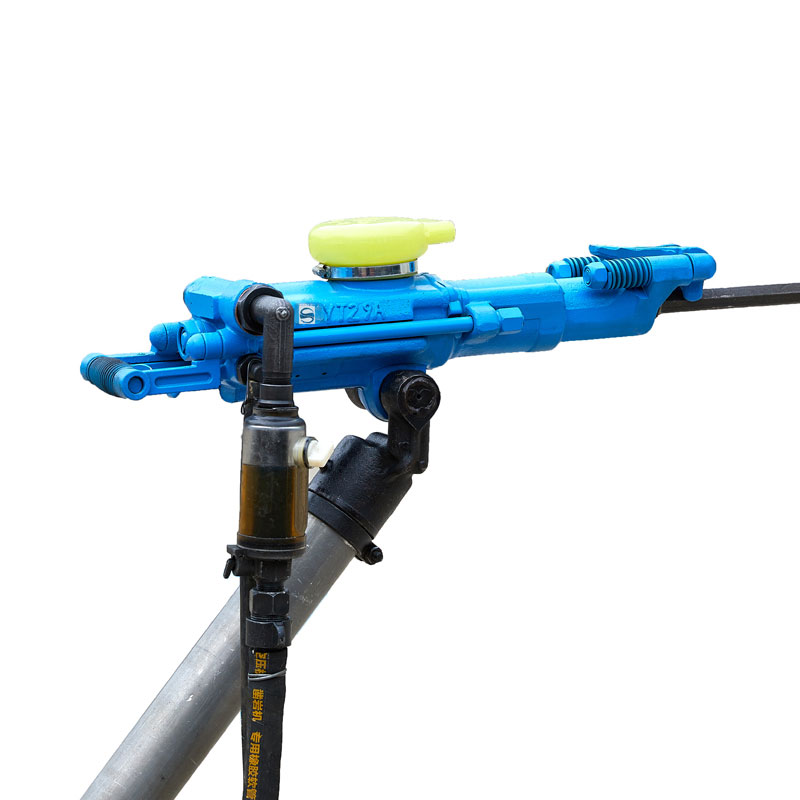

YT29 Air Leg Pneumatic Rock Drill Jack Hammer
YT29 Air Leg Pneumatic Rock Drill Jack Hammer
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality YT29 Air Leg Pneumatic Rock Drill Jack Hammer, CMM looks forward to cooperating with you.
Send Inquiry
Product Description
CMM is one of professional leader China YT29 Air Leg Pneumatic Rock Drill Jack Hammer manufacturers with high quality and reasonable price. Welcome to contact us.
As Follows:
| Model |
YT29 Air Leg Pneumatic Rock Drill Jack Hammer |
|
Certification |
MA KA |
|
Certification NO. |
MED |
|
Dimension |
658×248×205mm |
|
Weight |
27Kg |
|
Cylinder diameter |
82mm |
|
Piston stroke |
60mm |
|
Operation temperature |
-30℃-50℃ |
|
Air/water hose size |
25mm/13mm |
|
Working air /water pressure |
0.4Mpa-0.63Mpa/0.3Mpa |
|
Drilling diameter |
34-45mm |
|
Shank dimension |
H22X108mm |
|
Max drill depth |
5m |
|
Impact frequency |
≥39（0.63Mpa）≥37(0.5Mpa) ≥36 (0.4Mpa)Hz |
|
Torque |
≥20（0.63Mpa）≥16(0.5Mpa) ≥14 (0.4Mpa)N·m |
|
Impact energy |
≥78（0.63Mpa）≥69 (0.5Mpa) ≥50(0.4Mpa)J |
|
Air consumption |
≤88（0.63Mpa）≤65 (0.5Mpa) ≤52(0.4Mpa)L/s |
|
RPM |
≥300（0.63Mpa）≥300(0.5Mpa) ≥280 (0.4Mpa)r/min |
|
Noise |
≤126（0.63Mpa）≤125(0.5Mpa) ≤124(0.4Mpa)dB |
|
Drilling speed |
≤850mg |
|
Supporting accessories |
Oiler: FY250C; Air leg: FT160A |
Technical data of supporting accessories:
| Item |
Oiler: FY250C |
Air leg: FT160A |
|
Weight |
1.2Kg |
17Kg |
|
Oil capacity |
0.25L |
- |
|
Overall length |
- |
1668mm |
|
Push length |
- |
1338mm |
|
Cylider diameter |
- |
65mm |
Product Advantages and Disadvantages
1.YT29 Air Leg Pneumatic Rock Drill Jack Hammer has the characteristics of high impact energy and high torque; Suitable for working environments with high rock hardness and numerous cracks, suitable for European human body and meeting the requirements of advanced operators;
2.YT29 Air Leg Pneumatic Rock Drill Jack Hammer has fast footage speed and is suitable for long-term operations and working environments with high requirements for construction period.
Disadvantages: It is not suitable for high dust working environment, and is prone to unexpected halting problem caused by internal pollution; High performance requirements for suitable drilling tool products.
